Feed into the cut and back - motor-powered
Arm height adjustment - manual
Control panel - on a mobile bridge
Log handling - manual
Maximal log length - 4,35 m

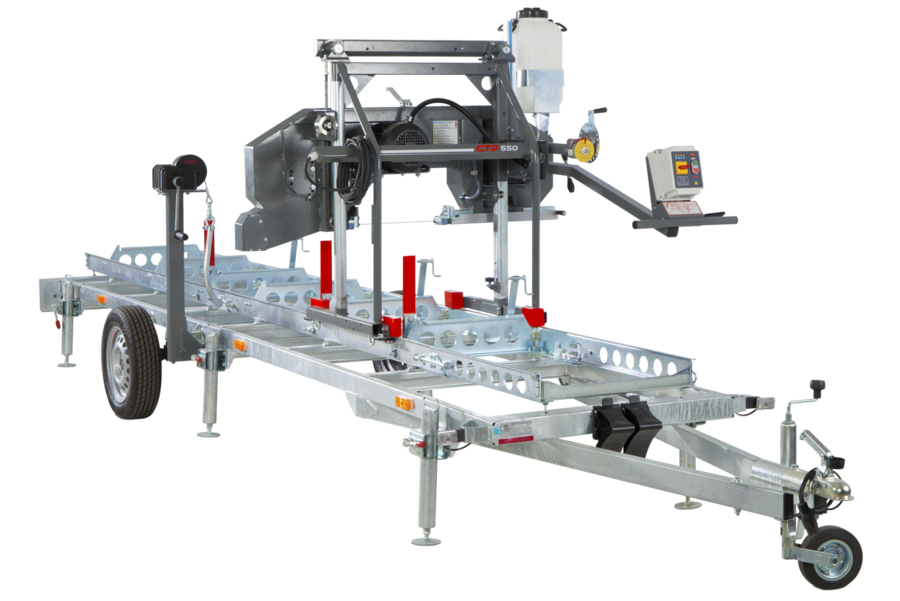

The machine is mounted on a stable trailer that allows easy transport of the machine to the sawing location.
The total weight of CTR 550 E mobil with a trailer is 585 kg.
Check your vehicle’s registration card for the maximum permissible trailer weight!
The trailer is fitted with six robust, infinitely adjustable support legs. These ensure stability both when loading and handling the log and during the sawing itself. Easy loading of the log onto the loading area of the machine using a manual winch and a ramp for log loading (accessory). The trailer is homologated, including complete machine. The standard length can be extended using the Mobil extending section, see accessories.
The trailer is single-axle and non-braked. The delivery also includes a waterproof tarpaulin, protecting the bridge with the sawmill arm from rain during transport or parking. For secure fastening, the tarpaulin is fitted with grommets and a steel cable with ends allowing the use of a padlock. The maximum permissible speed is 130 km/h.
The smallest machine in the offer. It is designed primarily for cutting smaller volumes of lumber. Ideal solution for family farms or small sawmilling companies. Unlike CTR 550 mobil, this model is equipped with mechanical feed into the cut and back with continuous speed control. That greatly increases comfort of the operator and the overall productivity. The feed is driven by an electric motor with worm gearbox controlled by a frequency inverter. You can change the speed of travel simply by turning the potentiometer knob on the control panel. End positions are secured against impact by means of automatic deceleration and stopping. The control panel is placed on a mobile bridge of the sawmill arm. Thanks to that the operator has closer access to the workpiece when cutting. Height is adjusted using a hand crank with adjustable scale.
Total power input of the machine of 4,18 kW guarantees low operating costs and easy connection to mains. The solidly mounted drive wheel is driven via a V-belt by a professional Honda petrol engine. Mechanical clutch lever enables an easy start of the engine and removal of the engine from the saw blade when the cut had finished.
The tensioning wheel system moves in a cast iron guide, which guarantees long service life and precision adjustment even with long-term use of the machine. The arm is fitted with aluminium running wheels with precise anti-vibration balancing. The circumference of the wheel has a recessed groove in which a replaceable rubber-textile V-belt is fitted, which forms the contact surface between the wheel and the saw blade. The stability of the machine is based on solid steel travel sections, which ensure optimum guidance of the sawmill bridge. The travel sections are fitted with tilting angle bars and log clamps/cam dogs.

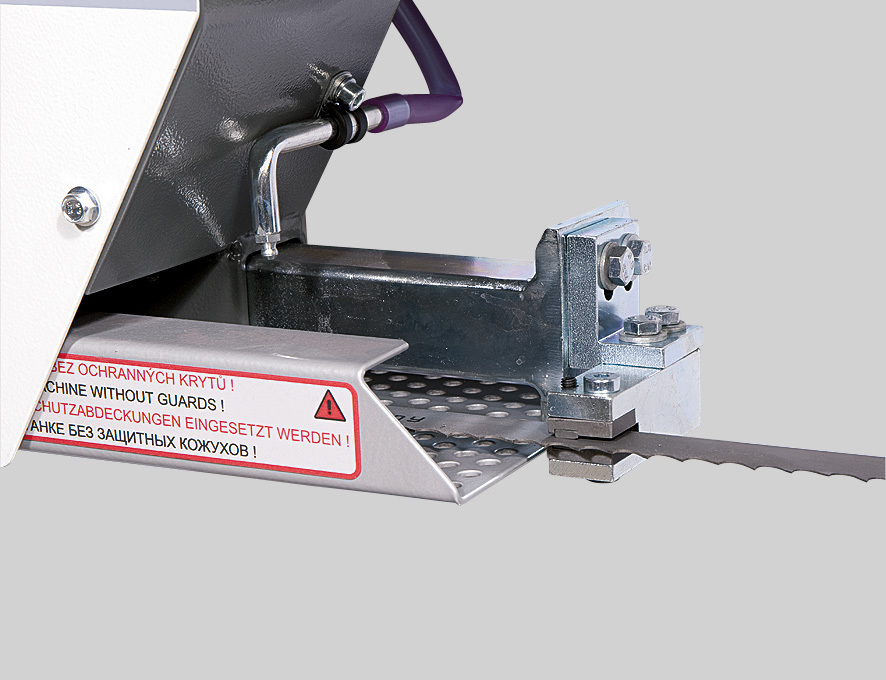

The samill CTR 550 E mobil uses standard sawmill blades 27-35 x 0.9 mm as with the fully professional models.
The CTR model series represents the latest trends in log-cutting sawmill design, with special emphasis on maximum accuracy and long service life at minimum cost. The machines are designed in an original modular way, which allows easy replacement or adjustment of all main technical nodes and their individual parts. This significantly reduces maintenance costs in the long-term use of the machine and also reduces service times, thus reducing production downtime.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
| Max. log diameter | 550 mm |
| Max. opening betwen blade guides | 400 mm |
| Max. elevation of blade | 465 mm |
| Min. log height | 20 mm |
| Max. depth of cut | 200 mm |
| Maximal log length | 4,35 m |
| Length extending section | 2,25 m |
| Total length of the machine including the trailer | 6.489 mm |
| Min. log length | 0,9 m |
| Sawmill motor | 4 kW |
| Feeding motor of the arm bridge | 0,18 kW |
| Max. feed speed (forw/back) | 15 m/min. |
| Sawblade | 3110 x 27÷35 x 0,9 mm |
| Trailer weight | 355 kg |
| Total weight of the machine including the trailer | 585 kg |
| Extending section weight | 98 kg |
Nomimal current of circuit breaker is minimally 20 Ampere
SPECIAL ACCESSORIES
-
Extending section Mobil 2,25 m
The cutting length of one section is 2.25 metres and the sections can be connected to each other. It can extend the total cutting length of mobile log band saws. The extending section consists of a very stable support structure that holds travel sections of the same design as those on the trailer. The Mobil extending section is fitted with four sturdy, continuously adjustable support legs. These ensure stability both when loading and handling the log and during the sawing itself. The Mobil extending section forms a separate unit. Due to its weight, it must not be transported on the trailer. It must be transported separately, either as a whole or disassembled.
-
Saw blade tension indicator
Ensures accurate tensioning of the saw blade to a required value according to the pressure gauge and its control during the use of the machine. Optimum tensioning of the saw blade is essential for its service life and cutting accuracy.
-
START/STOP cooling system
Integrated in the cooling system is an electromagnetic through-flow valve, which automatically opens when the saw blade is started and closes when the saw blade is stopped. It substantially lowers the coolant consumption and saves time needed for replenishment of coolant liquid.
-
Log loading kit (ramp with winch)
Allows logs to load on the trailer. Include a ramp and winch.
-
Additional winch holder
The auxiliary winch holder saves your time if you frequently change the length or conicalness of the log being cut. You no longer need to move the base winch holder.
-
Log turner - hook
When attached to the rope winch, it facilitates log turning.
-
Cant hook
Serves as help with manipulation with logs on machine frame.
-
Clamp with tilting angle bar
Additional clamping kit. It consists of the clamp and a tilting angle bar.
-
Additional clamp
-
Cam dog
For fast and easy squared lumber clamping.
-
Grease Gun
For regular maintenance of the machine according to the lubrication plan. Metal grease gun for 400g tubes. Equipped with a flexible pressure hose.
-
Synthetic Grease LV 2-3
400g tube for the grease gun.
CONSUMABLE PARTS
-
Hard-metal plate 20 x 0.9 mm
-
Hard-metal plate 12 x 4 mm
-
Running wheel V-belt SPB 1500
Driven Wheel V-belt 17x1220 Li
-
Feed into the cut and back - motor-powered
Arm height adjustment - manual
Control panel - on a mobile bridge
Log handling - manual
Maximal log length - 4,35 mThe machine is mounted on a stable trailer that allows easy transport of the machine to the sawing location.
The total weight of CTR 550 E mobil with a trailer is 585 kg.
Check your vehicle’s registration card for the maximum permissible trailer weight!
The trailer is fitted with six robust, infinitely adjustable support legs. These ensure stability both when loading and handling the log and during the sawing itself. Easy loading of the log onto the loading area of the machine using a manual winch and a ramp for log loading (accessory). The trailer is homologated, including complete machine. The standard length can be extended using the Mobil extending section, see accessories.
The trailer is single-axle and non-braked. The delivery also includes a waterproof tarpaulin, protecting the bridge with the sawmill arm from rain during transport or parking. For secure fastening, the tarpaulin is fitted with grommets and a steel cable with ends allowing the use of a padlock. The maximum permissible speed is 130 km/h.
The smallest machine in the offer. It is designed primarily for cutting smaller volumes of lumber. Ideal solution for family farms or small sawmilling companies. Unlike CTR 550 mobil, this model is equipped with mechanical feed into the cut and back with continuous speed control. That greatly increases comfort of the operator and the overall productivity. The feed is driven by an electric motor with worm gearbox controlled by a frequency inverter. You can change the speed of travel simply by turning the potentiometer knob on the control panel. End positions are secured against impact by means of automatic deceleration and stopping. The control panel is placed on a mobile bridge of the sawmill arm. Thanks to that the operator has closer access to the workpiece when cutting. Height is adjusted using a hand crank with adjustable scale.
Total power input of the machine of 4,18 kW guarantees low operating costs and easy connection to mains. The solidly mounted drive wheel is driven via a V-belt by a professional Honda petrol engine. Mechanical clutch lever enables an easy start of the engine and removal of the engine from the saw blade when the cut had finished.
The tensioning wheel system moves in a cast iron guide, which guarantees long service life and precision adjustment even with long-term use of the machine. The arm is fitted with aluminium running wheels with precise anti-vibration balancing. The circumference of the wheel has a recessed groove in which a replaceable rubber-textile V-belt is fitted, which forms the contact surface between the wheel and the saw blade. The stability of the machine is based on solid steel travel sections, which ensure optimum guidance of the sawmill bridge. The travel sections are fitted with tilting angle bars and log clamps/cam dogs.
The samill CTR 550 E mobil uses standard sawmill blades 27-35 x 0.9 mm as with the fully professional models.
The CTR model series represents the latest trends in log-cutting sawmill design, with special emphasis on maximum accuracy and long service life at minimum cost. The machines are designed in an original modular way, which allows easy replacement or adjustment of all main technical nodes and their individual parts. This significantly reduces maintenance costs in the long-term use of the machine and also reduces service times, thus reducing production downtime.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
-
Max. log diameter 550 mm Max. opening betwen blade guides 400 mm Max. elevation of blade 465 mm Min. log height 20 mm Max. depth of cut 200 mm Maximal log length 4,35 m Length extending section 2,25 m Total length of the machine including the trailer 6.489 mm Min. log length 0,9 m Sawmill motor 4 kW Feeding motor of the arm bridge 0,18 kW Max. feed speed (forw/back) 15 m/min. Sawblade 3110 x 27÷35 x 0,9 mm Trailer weight 355 kg Total weight of the machine including the trailer 585 kg Extending section weight 98 kg Nomimal current of circuit breaker is minimally 20 Ampere
-
