Feed into the cut and back - hand-operated
Arm height adjustment - manual
Control panel - on a mobile bridge
Log handling - manual
Maximal log length: 4,35 m
The machine is mounted on a stable trailer that allows easy transport of the machine to the sawing location.
The total weight of CTR 550 GX mobil with a trailer is 587 kg.
Check your vehicle’s registration card for the maximum permissible trailer weight!
The trailer is fitted with six robust, infinitely adjustable support legs. These ensure stability both when loading and handling the log and during the sawing itself. Easy loading of the log onto the loading area of the machine using a manual winch and a ramp for log loading (accessory). The trailer is homologated, including complete machine. The standard length can be extended using the Mobil extending section, see accessories.
The trailer is single-axle and non-braked. The delivery also includes a waterproof tarpaulin, protecting the bridge with the sawmill arm from rain during transport or parking. For secure fastening, the tarpaulin is fitted with grommets and a steel cable with ends allowing the use of a padlock. The maximum permissible speed is 130 km/h.
In contrast to the standard version the sawmill is equipped with a professional Honda 8.7 kW (11 HP) petrol engine. Sufficient engine power allows trouble-free processing of logs of large diameters in all applications without the possibility of using an electric motor. Overall low weight allows easier transport of the machine. Due to higher weight and vibrations of petrol engine the construction of travelling bridge and sawmill arm is completely reinforced. The smallest machine in the offer. It is designed primarily for cutting smaller volumes of lumber. Ideal solution for family farms or small sawmilling companies. Very simple hand feed into the cut and back. The control panel is placed on a mobile bridge of the sawmill arm. Thanks to that the operator has closer access to the workpiece when cutting. Height is adjusted using a hand crank with adjustable scale.

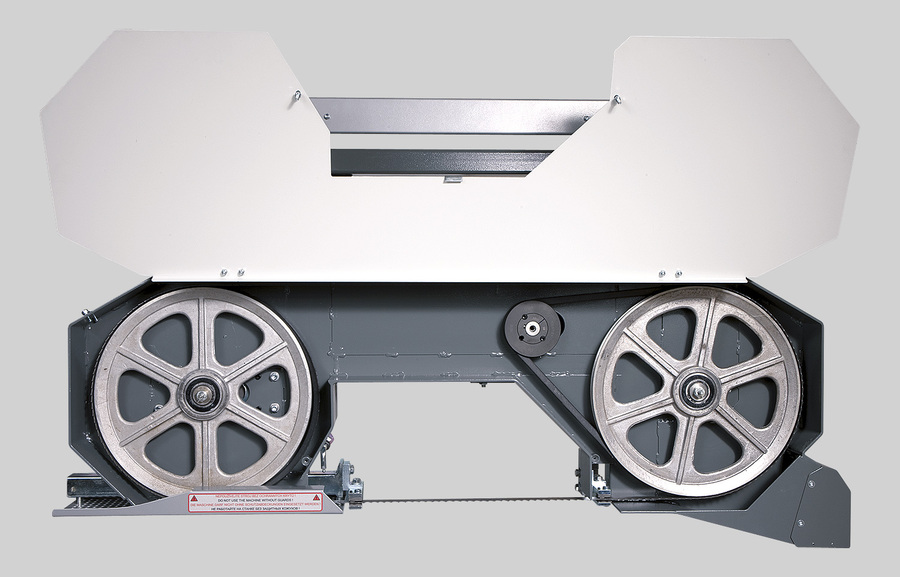

The solidly mounted drive wheel is driven via a V-belt by a professional Honda petrol engine. Mechanical clutch lever enables an easy start of the engine and removal of the engine from the saw blade when the cut had finished.
The tensioning wheel system moves in a cast iron guide, which guarantees long service life and precision adjustment even with long-term use of the machine. The arm is fitted with aluminium running wheels with precise anti-vibration balancing. The circumference of the wheel has a recessed groove in which a replaceable rubber-textile V-belt is fitted, which forms the contact surface between the wheel and the saw blade. The stability of the machine is based on solid steel travel sections, which ensure optimum guidance of the sawmill bridge. The travel sections are fitted with tilting angle bars and log clamps/cam dogs.
The samill CTR 550 GX mobil uses standard sawmill blades 27-35 x 0.9 mm as with the fully professional models.
The CTR model series represents the latest trends in log-cutting sawmill design, with special emphasis on maximum accuracy and long service life at minimum cost. The machines are designed in an original modular way, which allows easy replacement or adjustment of all main technical nodes and their individual parts. This significantly reduces maintenance costs in the long-term use of the machine and also reduces service times, thus reducing production downtime.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
| Max. log diameter | 550 mm |
| Max. opening betwen blade guides | 500 mm |
| Max. elevation of blade | 465 mm |
| Min. log height | 20 mm |
| Max. depth of cut | 200 mm |
| Total sawing length | 4,35 m |
| Length extending section | 2,25 m |
| Total length of the machine including the trailer | 6.489 mm |
| Min. log length | 0,9 m |
| Saw blade motor | 8,7 kW |
| Saw blade | 3340 x 27÷35 x 0,9 mm |
| Trailer weight | 355 kg |
| Total weight of the machine including the trailer | 587 kg |
| Extending section weight | 98 kg |
SPECIAL ACCESSORIES
-

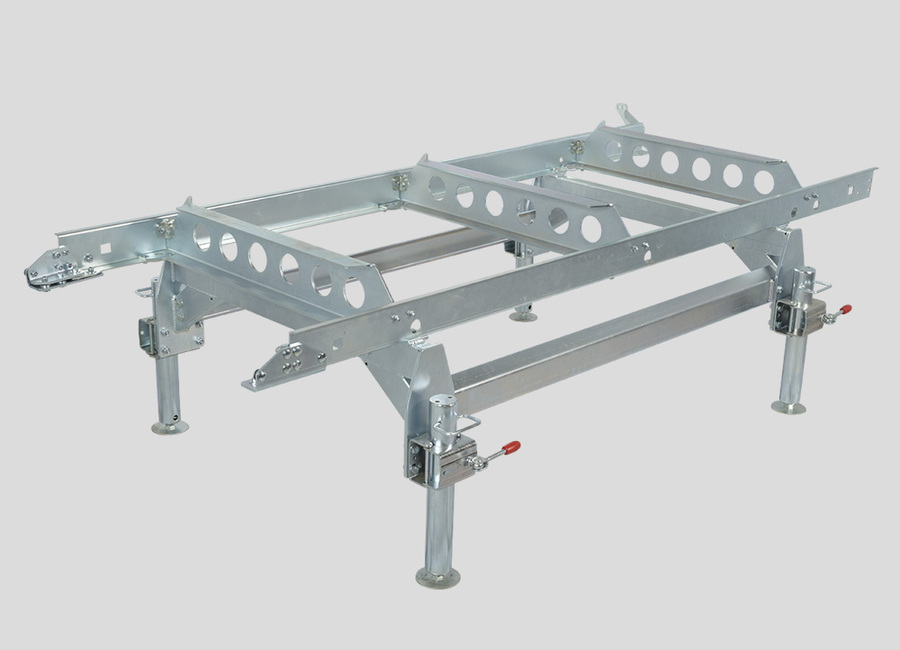

Extending section Mobil 2,25 m
The cutting length of one section is 2.25 metres and the sections can be connected to each other. It can extend the total cutting length of mobile log band saws. The extending section consists of a very stable support structure that holds travel sections of the same design as those on the trailer. The Mobil extending section is fitted with four sturdy, continuously adjustable support legs. These ensure stability both when loading and handling the log and during the sawing itself. The Mobil extending section forms a separate unit. Due to its weight, it must not be transported on the trailer. It must be transported separately, either as a whole or disassembled.
-
Saw blade tension indicator
Ensures accurate tensioning of the saw blade to a required value according to the pressure gauge and its control during the use of the machine. Optimum tensioning of the saw blade is essential for its service life and cutting accuracy.
-
Log loading kit (ramp with winch)
Allows logs to load on the trailer. Include a ramp and winch.
-
Additional winch holder
The auxiliary winch holder saves your time if you frequently change the length or conicalness of the log being cut. You no longer need to move the base winch holder.
-
Log turner - hook
When attached to the rope winch, it facilitates log turning.
-
Cant hook
Serves as help with manipulation with logs on machine frame.
-
Clamp with tilting angle bar
Additional clamping kit. It consists of the clamp and a tilting angle bar.
-
Additional clamp
-
Cam dog
For fast and easy squared lumber clamping.
-
Grease Gun
For regular maintenance of the machine according to the lubrication plan. Metal grease gun for 400g tubes. Equipped with a flexible pressure hose.
-
Synthetic Grease LV 2-3
400g tube for the grease gun.
CONSUMABLE PARTS
-
Hard-metal plate 20 x 0.9 mm
-
Hard-metal plate 12 x 4 mm
-
Running wheel wedge belt 17x1420 Li
Wheel wedge belt 17x1220 Li
-
